Flexible digital tensile and compression force testing [Sauter FM-M]

Description
PDF (5)

The FM-M digital force gauge uses an external load cell for precise tensile and compression force measurements in testing laboratories, development, industry and maintenance. Its backlit reversible display supports clear readings in different measuring positions.

Peak hold captures maximum values, while track mode shows the continuous measurement. A rising capacity indicator visualises the measuring range still available.
Upper and lower limits can be set in both tensile and compression directions for tolerance testing, with a visual signal supporting assessment.

Up to 500 readings can be stored internally. USB-C and PS/2 provide flexible data transfer and device coupling.
Selectable units N, kN, kgf and lbf simplify adaptation to different testing tasks.

Main applications:

Testing laboratories
Research and development
Automotive industry
Maintenance and servicing
Plastics technology

Scope of delivery:

FM-M digital force gauge
External load cell
Robust carrying case
Rechargeable battery
Power adapter

Technical data:

Tolerance: 0.2% of [Max]
Measuring head sampling rate: 1000 Hz
Overload protection: 120% of [Max]
Supplied power source: rechargeable battery and power adapter
Memory function
Internal data memory: 1 value group, up to 500 readings
Limit function
Hold function
Peak function
Housing material: ABS plastic
Fully assembled dimensions (W×D×H): 71×31×180 mm
Net weight approx.: 0.30 kg
Interfaces: USB device, USB-C and PS/2

Product safety information

Manufacturer information:

KERN & SOHN GmbH
Ziegelei 1
72336 Balingen-Frommern
Baden-Württemberg
Deutschland
info@kern-sohn.com
https://www.sauter.eu/

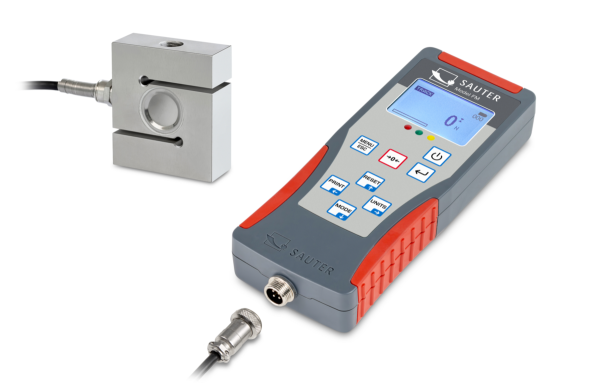

Digital force gauge with external load cell [Sauter FM-M]
