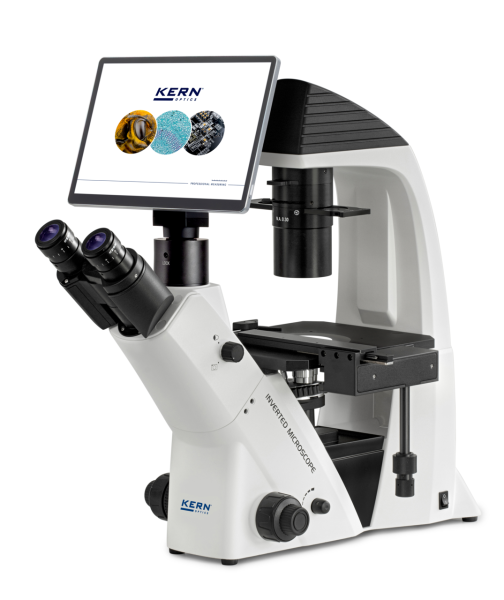

Digital compound microscope incl. Tablet [Kern OCM-S]

Digital set with microscope, camera and C-mount adapter for convenient observation and precise documentation of the sample

Eyepiece: HWF 10x Ø 22 mm HWF 10x Ø 22 mm
Optical system: Infinity Infinity
Objective: 10x / 20x / 40x / PH 20x 10x / 20x / 40x / PH 20x
Illumination: 5W LED (transmitting) 5W LED (transmitting)
Special: incl. tablet-camera ODC 251 (8 MP 4K) incl. tablet-camera ODC 251 (8 MP 4K)

5.301,00 €

incl. 19% VAT ,

This item has variations. Please select the requested variation.

OCM 162

The OCM range stands out through its design which is ergonomic, robust and extremely stable. This design, with its large working distance, is particularly suitable for the monitoring and analysis of cell cultures, for example
A 5W LED illumination unit ensures the optimum illumination in the bright field of your samples
A special Abbe N.A. 0.3 condenser with aperture diaphragm and large working distance of 72 mm guarantees the very best working practise in the bright field and with fluorescence applications
The mechanical stage including specimen holder (∅ 110 mm) means that you can work quickly and effectively. Further brackets for petri dishes are included with delivery or available as accessories

ODC 251

The KERN ODC 251 microscope tablet camera consists of an Android tablet with a 10.5" HD touch display in combination with an 8 MP camera. It is intuitive to use and is suitable for all trinocular microscopes with a C-mount adapter
The KERN tablet cameras have been specially developed for simple, direct monitoring of samples on the screen, whether used in the laboratory, in quality testing or in training and studying
The integrated high-performance camera has an 8 MP image sensor with a sensor size of 1/1.8" and is able to record videos with a resolution of 4K. In this way, as well a live transfer of the image to the Android table, high-resolution images and videos can also be created for the documentation. Measuring functions, such as, for example, functions for measuring distance and surfaces are also available
Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures
A range of additional functions are provided through the integrated interfaces, such as, for example
- Data storage on a USB stick
- Connection to a USB mouse
- Transfer of the live image to an external screen using HDMI
- Transfer of stored data to a computer via USB data cable

Technical Data:

This range is available to you as a comprehensive digital solution for your live investigations.
