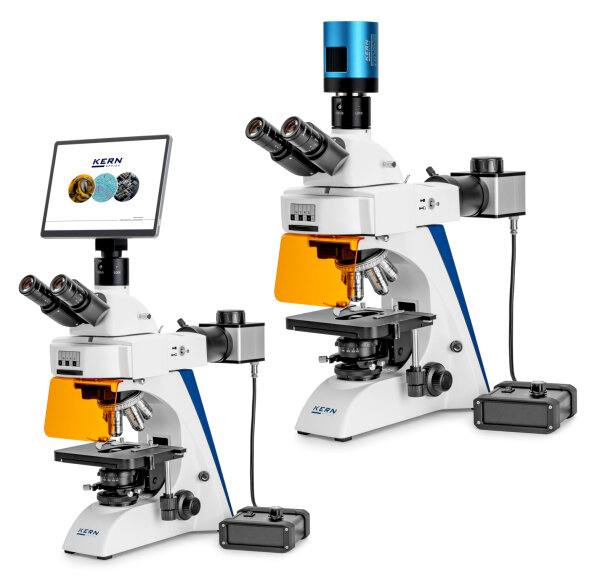

Digital fluorescence microscope incl. Camera/Tablet [Kern OBN-S]

Digital set with microscope, camera/tablet and C-mount adapter for complex analyses

Eyepiece: HWF 10x Ø 20 mm HWF 10x Ø 20 mm
Optical system: Infinity Infinity
Objective: 4x / 10x / 20x / 40x / 100x 4x / 10x / 20x / 40x / 100x
Illumination: LED + 5W LED Epi Fluorescence (UV/V/B/G) LED + 5W LED Epi Fluorescence (UV/V/B/G)
Special: incl. tablet-camera ODC 251 (8 MP 4K) incl. tablet-camera ODC 251 (8 MP 4K)

incl. ODC 861 camera with Peltier cooling technology incl. ODC 861 camera with Peltier cooling technology

from

8.300,00 €

incl. 19% VAT ,

This item has variations. Please select the requested variation.

OBN 142

The fluorescence microscope in the OBN series is based on the usual high quality and versatility of the OBN series. The outstanding, stable design in combination with high-quality optics set the standard in fluorescence microscopy in this class
3 W LED transmitted illumination unit and 5 W LED Epi fluorescence incident illumination unit
This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm.
The extremely large mechanical stage with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately
As standard, the filter wheel which has up to 6 fittings is fitted with a B/G/UV/V fluorescence filter

ODC 861

The ODC 861 camera with Peltier cooling technology has been specially designed for fluorescent applications. It is able to significantly compensate for image noise associated with weak lighting. Due to its high resolution and light-sensitive Sony CMOS colour sensor it proves first-class images. The practical, sturdy storage box serves as protection and for transportation of this premium camera
Realtime images can be transferred straight to a PC or laptop using the integrated USB 3.0 interface. As an alternative, two USB 2.0 interfaces are available, to operate the camera with the VIS Pro KERN OXM 902 software which is included with the delivery
Power supply is from an external 12 V power unit
Black balance possible

ODC 251

The KERN ODC 251 microscope tablet camera consists of an Android tablet with a 10.5" HD touch display in combination with an 8 MP camera. It is intuitive to use and is suitable for all trinocular microscopes with a C-mount adapter
The KERN tablet cameras have been specially developed for simple, direct monitoring of samples on the screen, whether used in the laboratory, in quality testing or in training and studying
The integrated high-performance camera has an 8 MP image sensor with a sensor size of 1/1.8" and is able to record videos with a resolution of 4K. In this way, as well a live transfer of the image to the Android table, high-resolution images and videos can also be created for the documentation. Measuring functions, such as, for example, functions for measuring distance and surfaces are also available
Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures
A range of additional functions are provided through the integrated interfaces, such as, for example
- Data storage on a USB stick
- Connection to a USB mouse
- Transfer of the live image to an external screen using HDMI
- Transfer of stored data to a computer via USB data cable

Technical Data:

This range is available to you as a comprehensive digital solution for your live investigations.
